Pin Type: Double Lock Same Side
Pin Length: 9.07
Pin Diameter: 1.872
Thrust Bearing: T188SS
Bushing Type: Steel/Spiral
Brand: Universal
Cross Reference: 300-305, 300-306, 306-K147E, 308-305, 328347, 328349, 460.534B, 460.534C, 460.534X, 500.620, 70.147.05, FKP-144-B, FKP-144-C, K147E, KB-868, KB-868CB, KB-868PS, R202006, SKB-629, SKB-717, SKB-717K, SKB-717PS, SKB-717V, SKB14705, SKS14705, TK-717

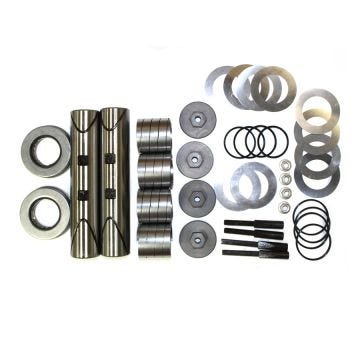

The king pin serves as the pivot point which attaches the wheel spindle to the axle beam and is considered to be the most critical component of the axle assembly. It provides the means for the drag link, in connection with the steering arm, to change the lateral movement into turning motion.
Since the king pin is the very heart of the axle assembly, it is mandatory for a replacement part of this nature to be of the highest quality.
